Quickstart

Basic simulation using package data. PISTA package data includes filter profiles and PSF profiles for INSIST. This can be utilized for simulating images using INSIST specifications.

Initialization

import pista as pis
from pathlib import Path
from astropy.table import Table
import matplotlib.pyplot as plt

data_path = Path(pis.__file__).parent.joinpath()
%matplotlib inline

Source Catalog

tab = Table.read(f'{data_path}/data/sample.fits')  # FITS Table
df  = tab.to_pandas()             # PISTA requires pandas DataFrame

Telescope parameters

tel_params = {
                'aperture'       : 100,
                'pixel_scale'    : 0.1,
                'psf_file'       : f'{data_path}/data/PSF/INSIST/off_axis_hcipy.npy',
                'response_funcs' :  [ f'{data_path}/data/INSIST/UV/Filter.dat,1,100',
                                      f'{data_path}/data/INSIST/UV/Coating.dat,5,100',   # 5 mirrors
                                      f'{data_path}/data/INSIST/UV/Dichroic.dat,2,100',  # 2 dichroics
                                      f'{data_path}/data/INSIST/UV/QE.dat,1,100'
                                    ],
              }

Initialize Imager object

sim = pis.Imager(df = df,tel_params = tel_params, n_x = 500, n_y = 500, exp_time = 2400)

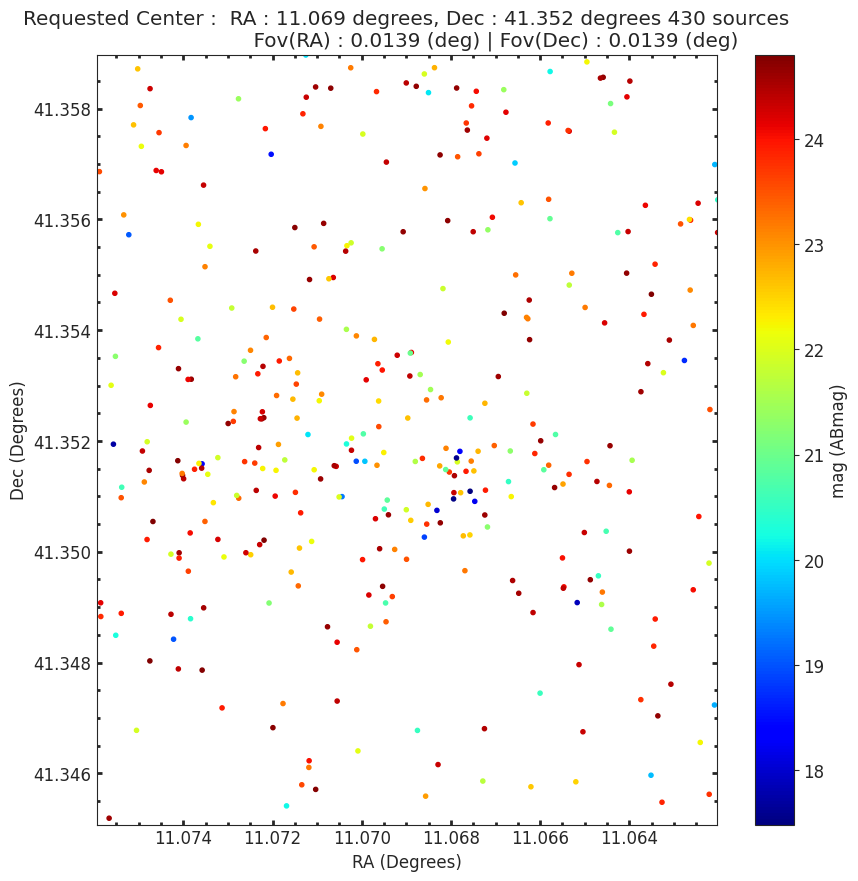

sim.show_field();

Detector parameters

det_params = {  'shot_noise' :  'Gaussian',
                'G1'         :  1,
                'PRNU_frac'  :  0.25/100,
                'RN'         :  3,
                'T'          :  218,
                'DN'         :  0.01/100
              }

Simulate Image

sim(det_params = det_params, photometry = 'Aper')

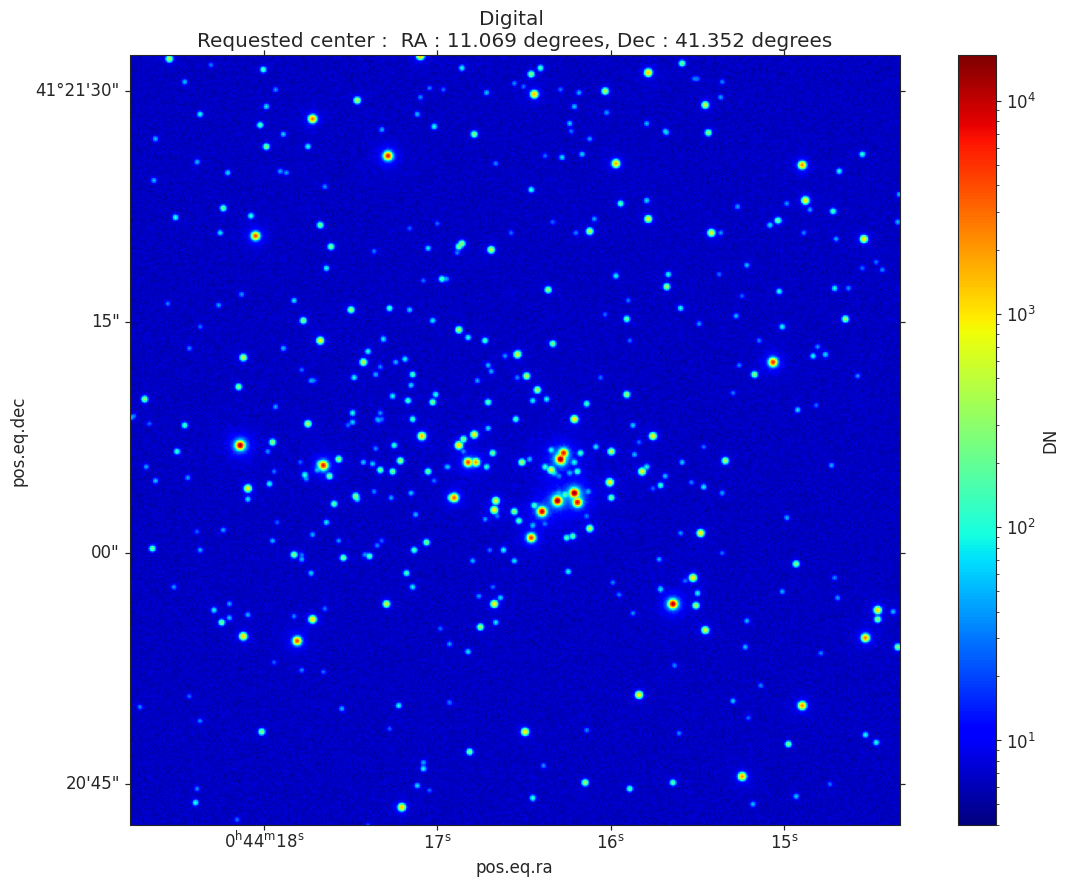

sim.show_image()

(<Figure size 1500x1000 with 2 Axes>,
 <WCSAxes: title={'center': 'Digital \nRequested center :  RA : 11.069 degrees, Dec : 41.352 degrees'}>)
